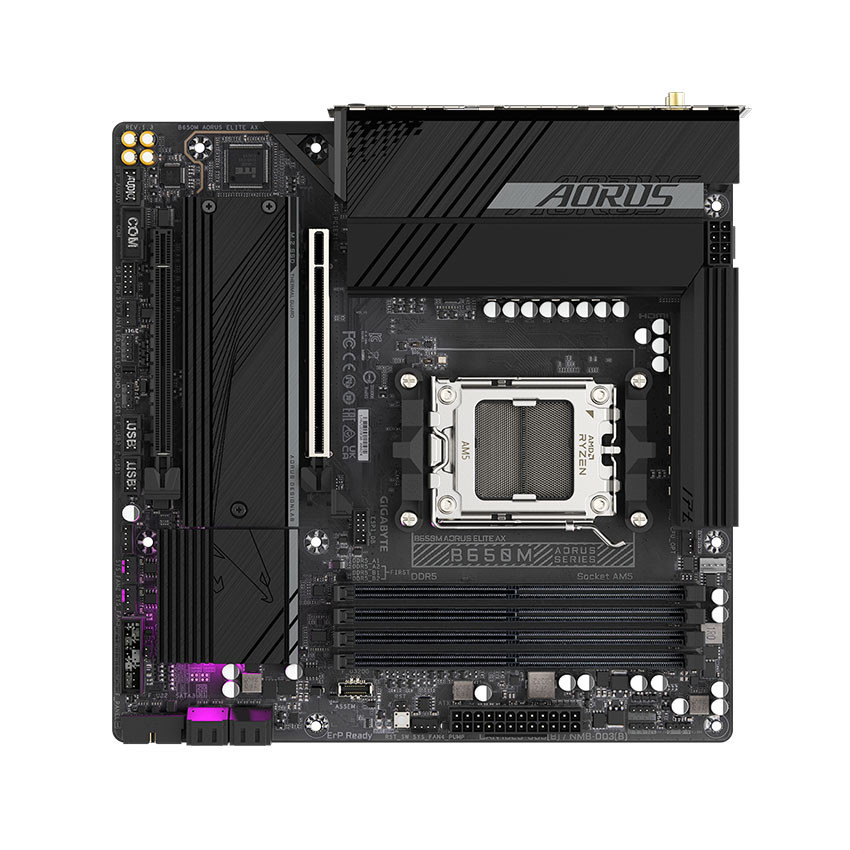

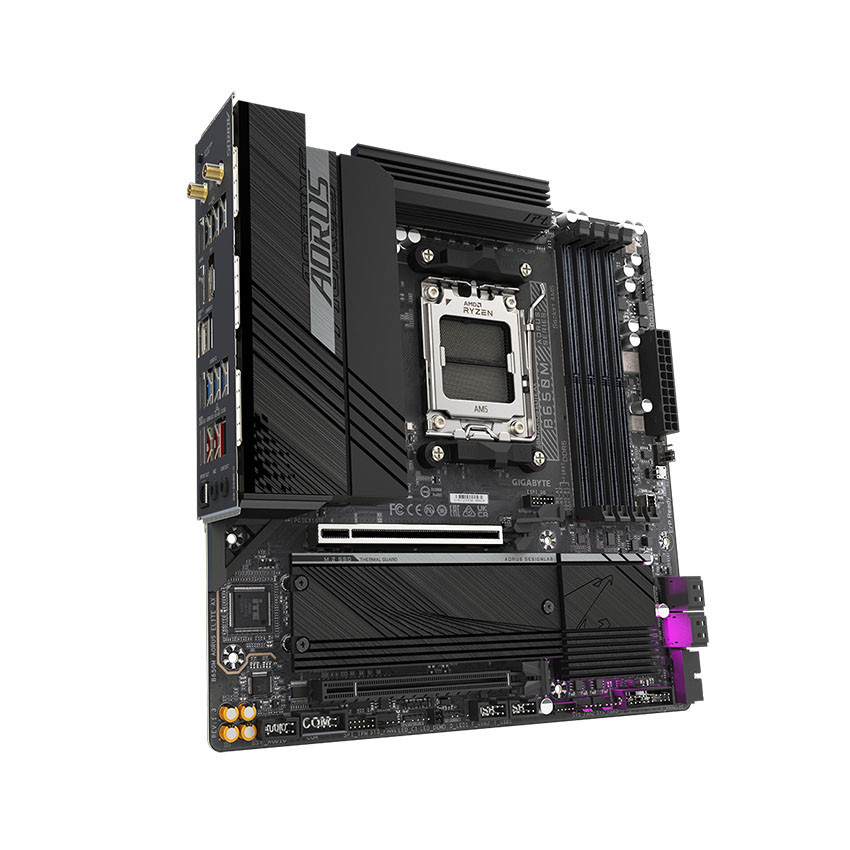

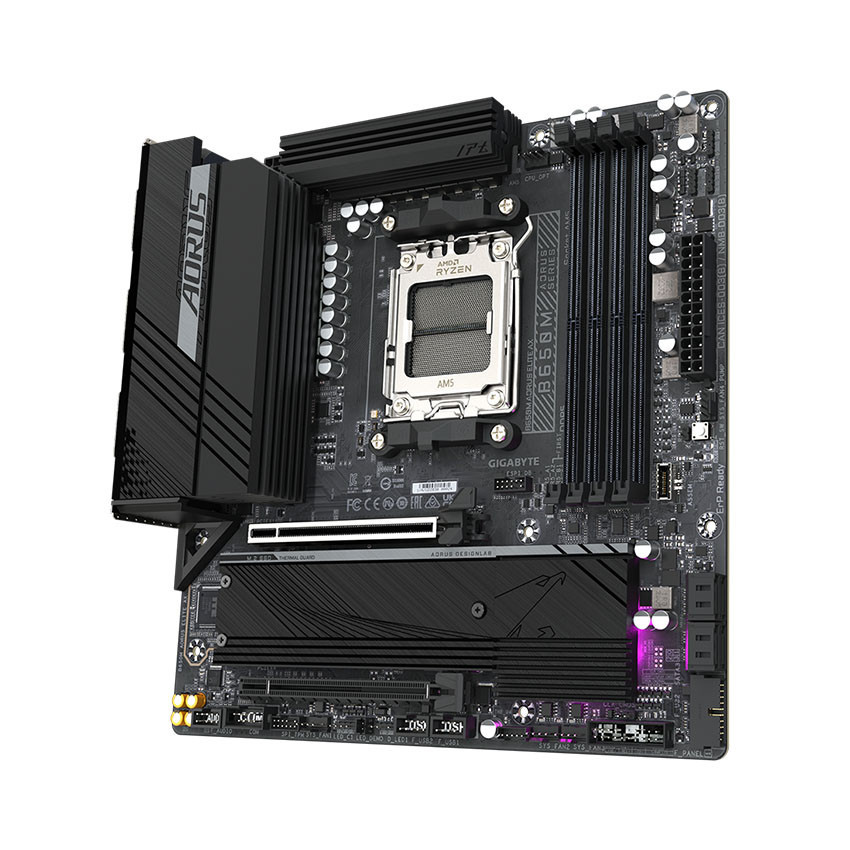

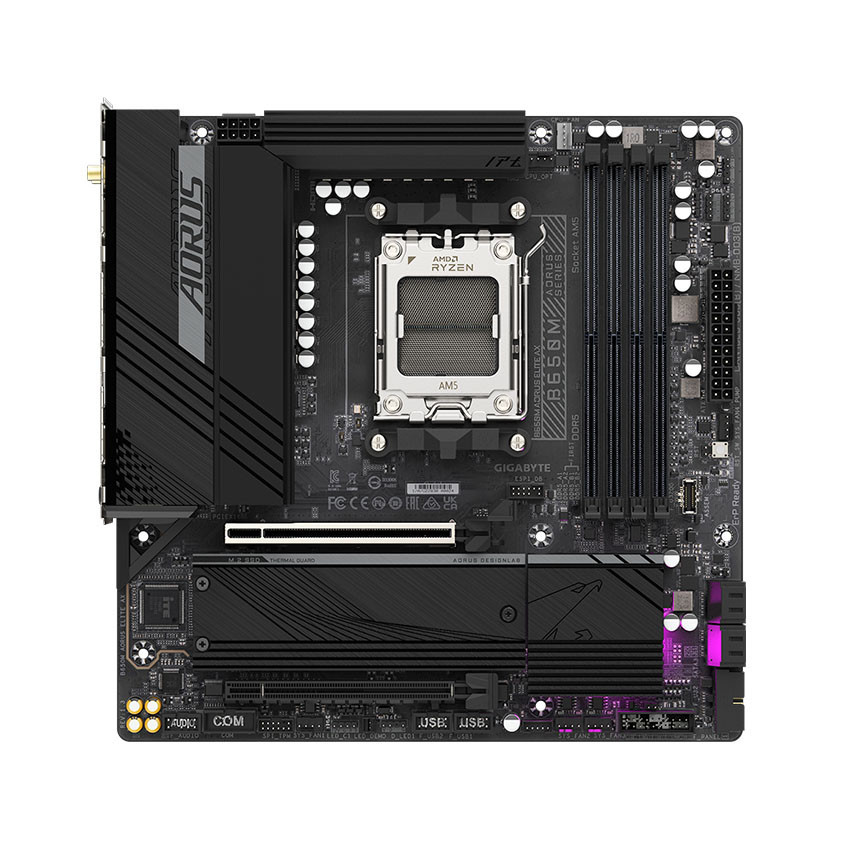

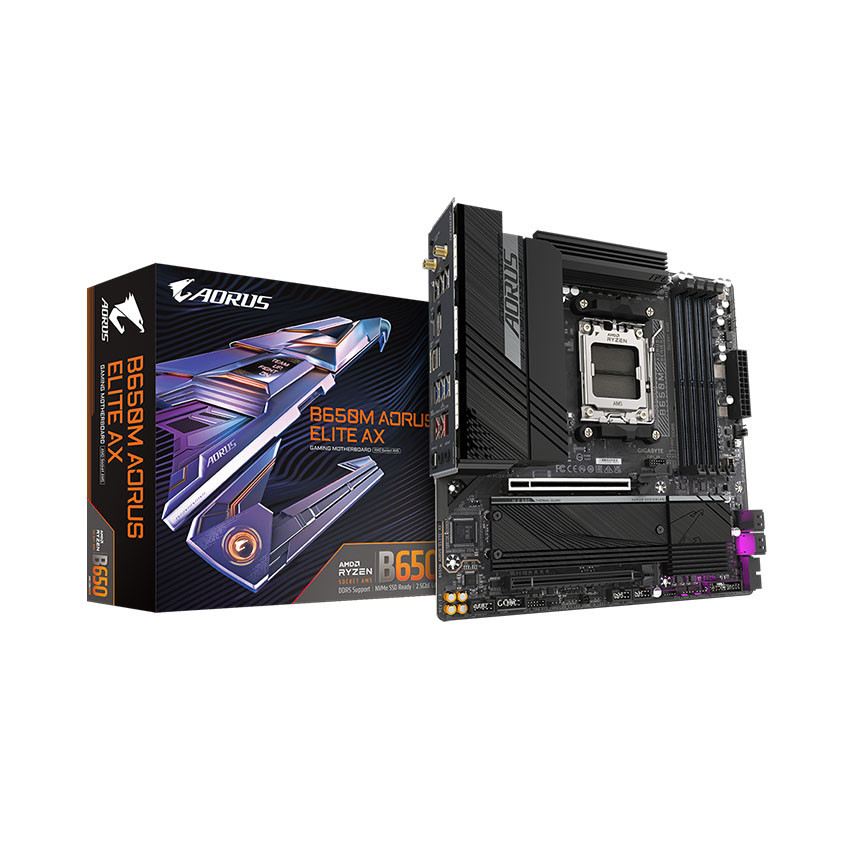

Mainboard Gigabyte B650M AORUS ELITE AX DDR5

4.590.000VNĐ

~~4.990.000VNĐ~~

Tiết kiệm: 400.000VNĐ

Bảo hành: 36 Tháng

Mô tả sản phẩm

- Socket: AMD Socket AM5 hỗ trợ CPU AMD Ryzen ™ 7000 Series - Kích thước: ATX - Khe cắm RAM: 4 khe (Tối đa 128GB) - Khe cắm mở rộng: 1 x PCI Express x16 slot - Khe cắm ổ cứng: M.2 connector, 4 x SATA 6Gb/s connectors

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
Model	AORUS ELITE AX DDR5
CPU hỗ trợ	AMD Socket AM5 for AMD Ryzen™ 7000 Series
Chipset	B650
RAM hỗ trợ	Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)
Khe cắm mở rộng	CPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Ổ cứng hỗ trợ	CPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)* Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumper

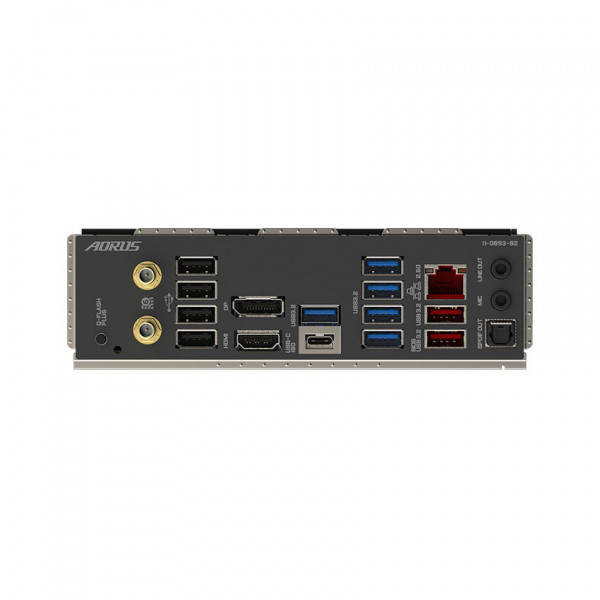

Cổng kết nối (Back Panel)	1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)5 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks
LAN	Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WIRELESS/ BLUETOOTH	AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.2Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateIntel® Wi-Fi 6E AX210 (For PCB rev. 1.1)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Kích cỡ	1.Micro ATX Form Factor; 24.4cm x 24.4cm Micro ATX Form Factor; 24.4cm x 24.4cm
