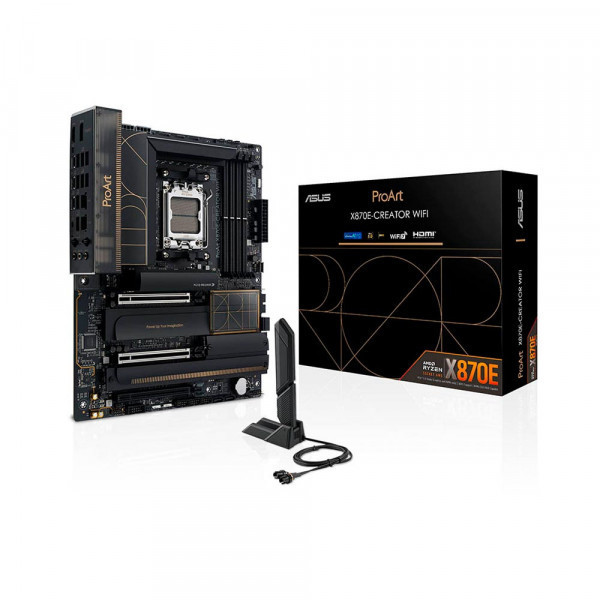

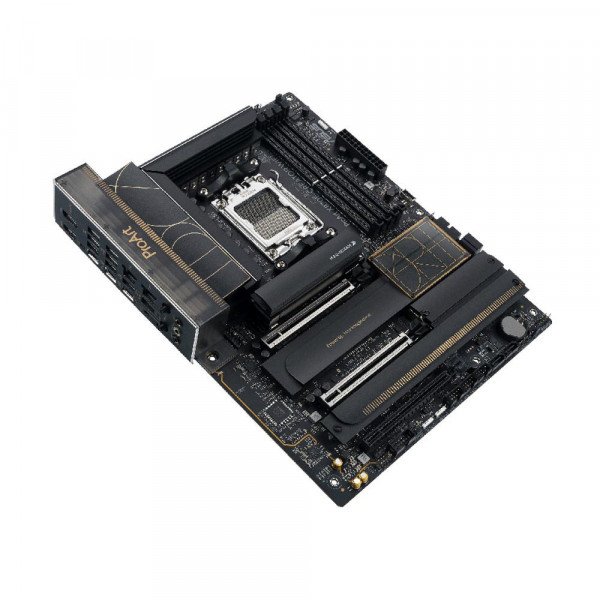

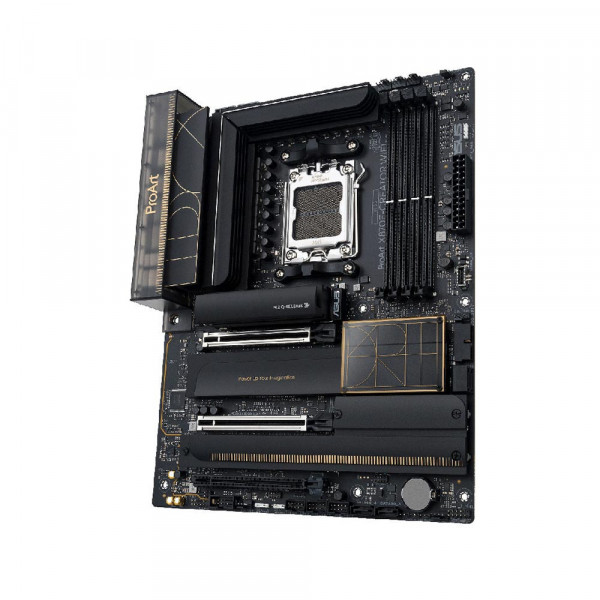

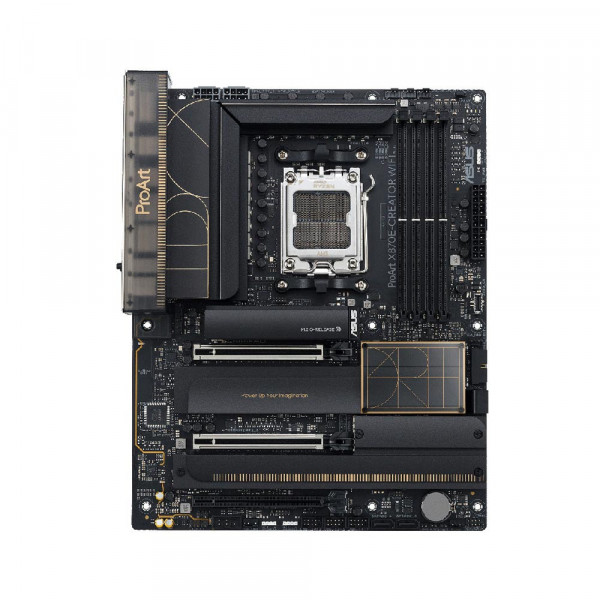

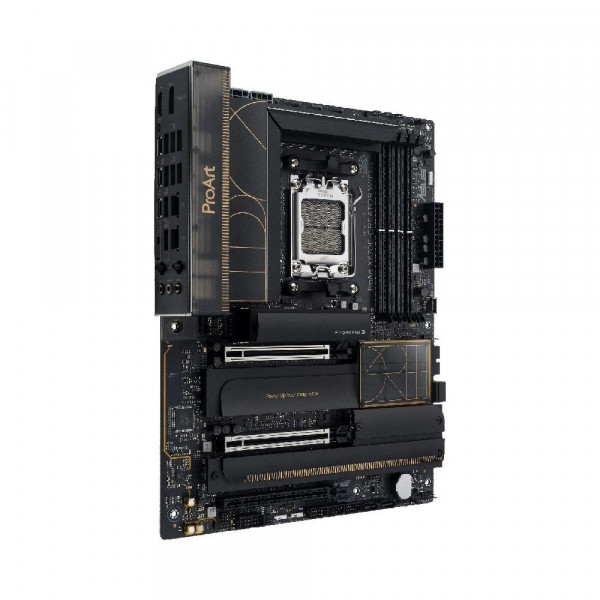

Mainboard ASUS ProArt X870E-Creator WiFi

16.090.000VNĐ

~~18.990.000VNĐ~~

Tiết kiệm: 2.900.000VNĐ

Bảo hành: 36 Tháng

Mô tả sản phẩm

Chipset: AMD X870 Socket: AM5 Số khe RAM: 4 khe DDR5 Kích thước: ATX Tích hợp sẵn Wifi & Bluetooth

Nhà sản xuất	Asus
Model	PROART-X870E-CREATOR-WIFI
Mainboard Form Factor	ATX
Chipset	AMD X870E Chipset
Socket CPU	LGA AM5
CPU Hỗ trợ	AMD Ryzen 7000, 8000, 9000 Series
RAM Hỗ trợ	4x DDR5 DIMM Slot
Dung lượng RAM tối đa	192GB
Model	ProArt X870E-Creator WiFi
CPU	AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
CPU	* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset	AMD X870E
Memory	4 x DIMM slots, max. 192GB, DDR5
	Supports up to
	8000+MT/s(OC) with Ryzen™ 9000 Series Processors,
	8000+MT/s(OC) with Ryzen™ 8000 Series Processors,
	8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
	ECC and Non-ECC Un-buffered DIMM
	Dual Channel Memory Architecture
	Supports AMD Extended Profiles for Overclocking (EXPO™)
	ASUS Enhanced Memory Profile (AEMP)
	* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
	* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics	1 x HDMITM port**
	2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
	* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
	** Supports 4K@60Hz as specified in HDMI 2.1.
	*** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	**** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
	2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)**
	AMD X870E Chipset
	1 x PCIe 4.0 x16 slot (supports x4 mode)
	* Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
	** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot.
	- To ensure compatibility of the device installed, please refer to
	https://www.asus.com/support/ for the list of supported peripherals.
Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
	AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
	M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
	AMD X870E Chipset
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
	4 x SATA 6Gb/s ports
	*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000series CPU.
	** PCIEX16(G5)_2 slot shares bandwidth with M.2_2.
Ethernet	1 x Marvell® AQtion 10Gb Ethernet
	1 x Intel® 2.5Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth	Wi-Fi 7*
	2x2 Wi-Fi 7 (802.11be)
	Supports 2.4/5/6GHz frequency band**
	Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
	Bluetooth® v5.4***
	*Wi-Fi features may vary depending on the operating system
	For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
	For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
	** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
	*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB	Rear USB (Total 11 ports)
	2 x USB4® (40Gbps//20Gbps) port(s) (2 x USB Type-C®)
	1 x USB 20Gbps port(s) (1 x USB Type-C®)
	7 x USB 10Gbps port(s) (7 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	Front USB (Total 9 ports)
	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**
	1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
	3 x USB 2.0 headers support 6 additional USB 2.0 ports
	* USB Type-C® power delivery output: max. 5V/3.0A
	** USB Type-C®power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
	- Impedance sense for front and rear headphone outputs
	- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
	- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
	- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
	- Supports up to 32-Bit/192 kHz playback*
	Audio Features
	- Audio Shielding
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Unique de-pop circuit
	* Due to limitations in HDA bandwidth,
	32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
	** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

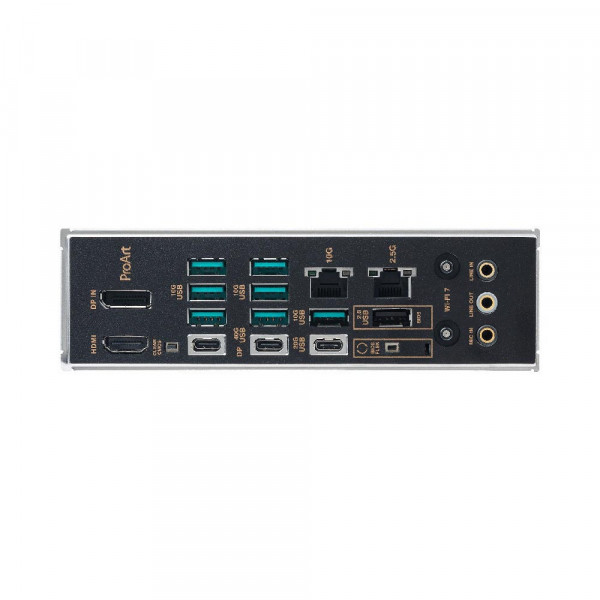

Back Panel I/O Ports	2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
	1 x USB 20Gbps port (1 x USB Type-C®)
	7 x USB 10Gbps ports (7 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	1 x DisplayPort (Input only)
	1 x HDMITM port
	1 x Wi-Fi Module
	1 x Marvell® AQtion 10Gb Ethernet
	1 x Intel® 2.5Gb Ethernet
	3 x Audio jacks
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	1 x 4-pin AIO Pump header
	5 x 4-pin Chassis Fan headers
	Power related
	1 x 24-pin Main Power connector
	2 x 8-pin +12V CPU Power connector
	Storage related
	4 x M.2 slots (Key M)
	4 x SATA 6Gb/s ports
	USB
	1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)
	1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
	3 x USB 2.0 headers support 6 additional USB 2.0 ports
	Miscellaneous
	3 x Addressable Gen 2 headers
	1 x Chassis Intrusion header
	1 x COM Port header
	1 x CPU Over Voltage jumper
	1 x Front Panel Audio header (F_AUDIO)
	1 x 10-1 pin System Panel header
	1 x Thermal Sensor header
Special Features	ASUS 5X PROTECTION III
	- DIGI+ VRM (- Digital power design)
	- Enhanced DRAM Overcurrent Protection
	- ESD Guards
	- LANGuard
	- Overvoltage Protection
	- Safeslot
	- Stainless-Steel Back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- M.2 Q-Release
	- M.2 Q-Slide
	- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
	- Q-Antenna
	- Q-Connector
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink backplate
	- M.2 heatsinks
	- VRM heatsink design ASUS EZ DIY
	- BIOS FlashBack™ button
	- BIOS FlashBack™ LED
	- ProCool
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
	AURA Sync
	- Addressable Gen 2 headers
	Bespoke Motherboard Design & Business Focused Features
	- 24/7 Reliability
	- Overcurrent Protection
	Front Panel USB 20Gbps with Quick Charge 4+ Support
	- Support: up to 30W fast charging and USB Wattage Watcher
	- Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A
	- Compatible with PD3.0
Software Features	ASUS Exclusive Software
	Armoury Crate
	- Aura Creator
	- Aura Sync
	- Fan Xpert 4 with AI Cooling II
	- Power Saving
	ASUS DriverHub
	ASUS GlideX
	USB Wattage Watcher
	TurboV Core
	ASUS CPU-Z
	ProArt Creator Hub
	CreationFirst
	Adobe Creative Cloud (Free Trial)
	Norton 360 Deluxe (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUS EZ Flash 3
	- ASUS UEFI BIOS EZ Mode
	FlexKey
Remote Management Features	IT Management software supported
Remote Management Features	- ASUS Control Center Express(ACCE)
BIOS	256Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables
	1 x DisplayPort cable
	4 x SATA 6Gb/s cables
	Additional Cooling Kit
	1 x Thermal pad for M.2 22110
	Miscellaneous
	1 x ASUS WiFi Q-Antenna
	1 x Q-connector
	1 x M.2 Q-Latch package
	1 x M.2 Q-Latch Q-Slide package for M.2 backplate
	2 x Rubber Packages for M.2
	1 x ProArt ruler
	Documentation
	1 x Quick start guide
	1 x ACC Express Activation Key Card
Operating System	Windows® 11, Windows® 10 64-bit
Form Factor	ATX Form Factor
Form Factor	12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
